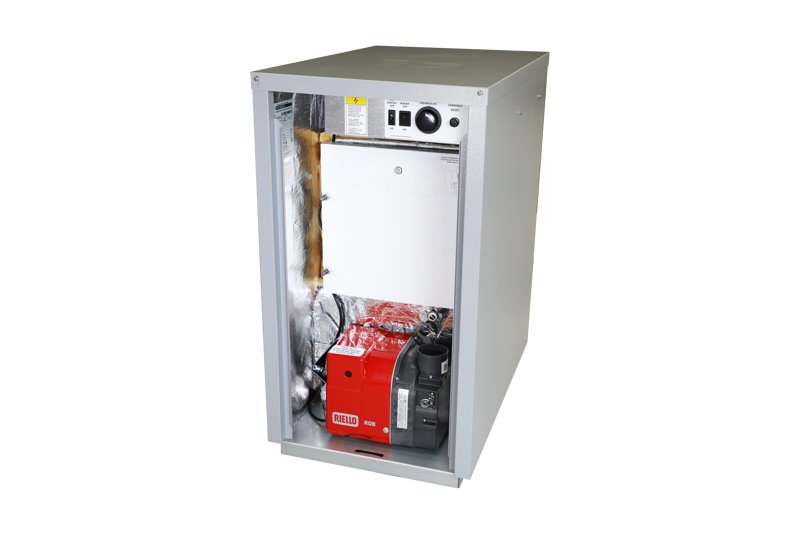

Grant Vortex External
A highly efficient range of free standing, external, condensing boilers, designed for situations where internal space is at a premium. Since its launch, the external model has been finished in a galvanised casing, however, the range has now been updated to a new goose grey powder coated finish, giving the module a distinctive, aesthetically pleasing, modernised look.
This range of outdoor condensing boilers features the award-winning unique Grant Vortex heat exchanger and has some of the highest efficiencies available on the market today.
a HeatingFeatures & benefits
Installation & Commissioning
Installation must comply with the current Building Regulations. As with all oil-fired appliances, Grant condensing boilers require commissioning at the time of installation. This simple process ensures that the boiler is working at peak efficiency which, in turn, will result in lower running costs and long term reliability. Annual maintenance is also made easy by Grant’s cleverly designed front service access to both burner and all the internal serviceable parts. This feature enables Grant Condensing Boilers to be fitted neatly and unobtrusively within either the kitchen, boiler house, or utility room environment. Comprehensive technical information can be found in the installation manual.
- High efficiency SEAI HARP ‘A’ Rating
- Features a Riello RDB Burner
- Multiple flueing options
- Optional pipe entry points
- Comes complete with a factory fitted multi-directional flue
- Optional side or rear flue exits
- Includes a factory fitted frost stat preset to 2°C
- Fully approved to OFTEC Standard and EC directives
- *One year manufacturer's warranty with five year guarantee on boiler heat exchanger (T&Cs Apply)
Grant announces streamlining of oil boiler ranges
In August 2022, the Grant Vortex and Euroflame oil fired boiler ranges will be streamlined, with many existing models rationalised to simplify the selection and ordering products and making the process more straightforward overall.
Read more here.
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Set Output |
Max Output |
Weight |
Height |
Width |
Depth |
Efficiency |
NOx Emissions |
Tappings Flow/Return |
Burner |
Energy Rating |
Load Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VORTMOD1526P | Grant Vortex External PCoated 15-26 | 21kW | View | - | 26kW | 152kg | 908mm | 800mm | 505mm | 95 | Compliant | 22mm | Riello RDB2.2 | a Heating | - |
| VORTMOD2636P | Grant Vortex External PCoated 26-36 | 31kW | View | - | 36kW | 169kg | 908mm | 800mm | 505mm | 97 | Compliant | 28mm | Riello RDB2.2 | a Heating | - |
| VORTMOD3646P | Grant Vortex External PCoated 36-46 | 41kW | View | - | 46kW | 169kg | 908mm | 800mm | 505mm | 92.6 | Compliant | 28mm | Riello RDB2.2 | a Heating | - |
| VORTMOD4670P | Grant Vortex External PCoated 46-70 | 64kW | View | - | 70kW | 309kg | 1234mm | 945mm | 584mm | 93.6 | Compliant | 1 1/4" BSPmm | Riello RDB3.2 | a Heating | - |
Downloads
Accessories
Grant Vortex Mag One Magnetic Filter
- 6 bar max working pressure
- Supplied with spare sealing washers & o-rings
- 360° installation & 1" G.B connections
Fire Valve
- Essential fire protection for oil boilers
- Two alternative temperature settings
- Remote sensing up to 20 meters
