Hot Water Cylinders

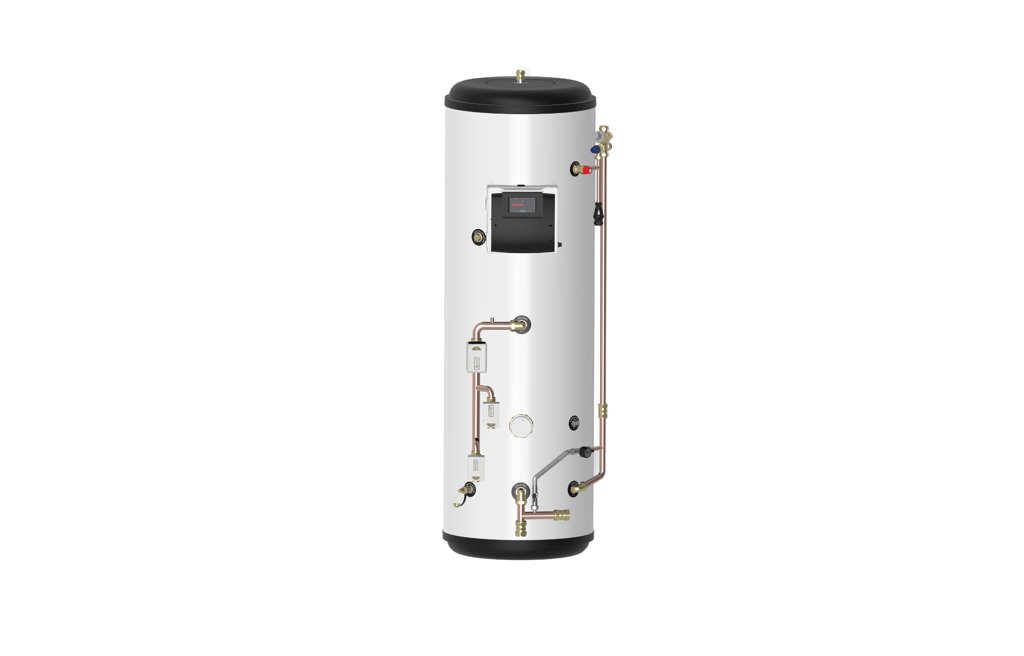

Grant Quick Recovery Smart Pre-Plumbed Cylinders
Grant Quick Recovery Smart Pre-Plumbed cylinders are designed to simplify installation while delivering high-performance hot water within heat pump systems. With factory-fitted hydraulic and electrical components, these cylinders reduce installation time on site and support a consistent system setup. They are compatible with the Grant Aerona Smart Controller, enabling efficient system control and optimisation.
Features & benefits
- Pre-plumbed and pre-wired configuration
- Factory-fitted pipework, valves and wiring centre
- Compatible with Grant Aerona Smart Controller
- High surface area, high-flow heat exchange coil for efficient heat transfer
- Fast heat-up and improved recovery performance to maintain hot water during peak demand
- Optimised for low temperature heat pump operation
- High-performance B-rated insulation to minimise heat loss and improve efficiency
- Designed for long-term durability and reliable operation
- Reduced installation time and on-site labour
- Available in a range of capacities (typically 180–300L)
Performance & Build Quality
Grant Quick Recovery Smart Pre-Plumbed cylinders are designed to support consistent performance and long-term reliability.
- Each unit incorporates a high surface area, high-flow heat exchange coil to support efficient heat transfer and strong recovery performance.
- High-performance B-rated insulation helps minimise standing heat loss and improve system efficiency.
- Factory-fitted hydraulic and electrical components support consistent installation quality and reduce on-site complexity.
Installation & System Integration
- Designed for use with Grant Aerona R290 air source heat pumps
- Supports simplified hydraulic and electrical installation
- Reduces installation time and system complexity
- Suitable for a wide range of domestic applications
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Weight Empty |
Weight Full |
Height |
Width |
Depth |
Pressure Regulator |
Immersion |
Expansion Vessel |
Coil Rating Primary |
Coil Rating Secondary |
Coil Rating Solar |
Standing Heat Loss |
Energy Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPCY180SMARTPPGR290 | Grant Quick Recovery Smart Pre-Plumbed Single Coil Cylinder 180L | - | View | 46kg | 214kg | 1354mm | 561mm | - | - | - | - | - | - | - | - | b Water |
| HPCY210SMARTPPGR290 | Grant Quick Recovery Smart Pre-Plumbed Single Coil Cylinder 210L | - | View | 51kg | 249kg | 1541mm | - | - | - | - | - | - | - | - | - | b Water |
| HPCY300SMARTPPGR290 | Grant Quick Recovery Smart Pre-Plumbed Single Coil Cylinder 300L | - | View | 61.5kg | 349kg | 2103mm | 561mm | - | - | - | - | - | - | - | - | c Water |
