Hot Water Cylinders

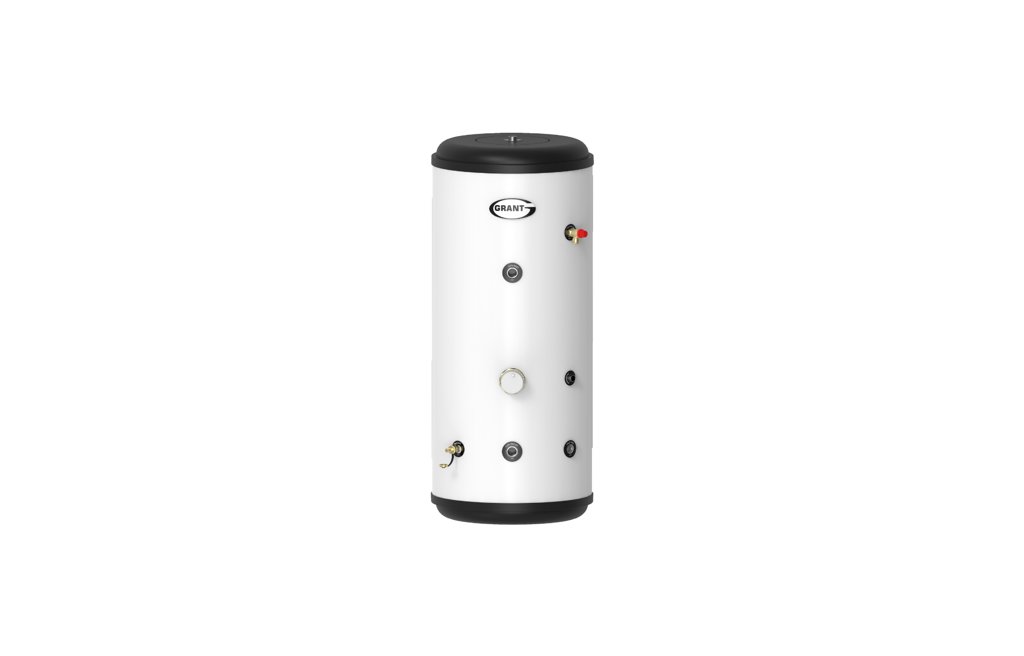

Grant Quick Recovery Cylinders
Grant Quick Recovery cylinders deliver reliable hot water performance within modern heat pump systems. Designed for use with the Grant Aerona R290 air source heat pump, these cylinders feature high surface area, high-flow heat exchange coils to support efficient heat transfer, fast heat-up and improved recovery performance at lower operating temperatures. Suitable for a wide range of domestic applications, the standard cylinder range provides flexibility in system design and installation while supporting improved efficiency compared to previous cylinder generations.
Features & benefits
- High surface area, high-flow heat exchange coil to maximise heat transfer efficiency
- Fast heat-up and improved recovery performance to maintain hot water during peak demand
- Optimised for low temperature heat pump operation
- High-performance B-rated insulation to minimise standing heat loss and improve system efficiency
- Designed for long-term durability and reliable operation within modern heating systems
- Available in a range of capacities (typically 150 – 300L)
- Supplied with factory-fitted immersion heater
- Compatible with unvented systems and supplied with key installation components
- Labelled connections to support straightforward installation
- No sacrificial anode required, reducing maintenance
Performance & Build Quality
Grant Quick Recovery cylinders are designed to support reliable operation and long-term durability within modern heat pump systems.
- Each cylinder incorporates a high surface area, high-flow heat exchange coil to maximise heat transfer efficiency and support strong recovery performance.
- High-performance B-rated insulation helps reduce standing heat loss and improve overall system efficiency.
- Optimised flow characteristics help reduce operational noise during system operation.
- All models are suitable for integration within unvented systems and support a wide range of domestic applications.
Installation & System Integration
- Designed for integration with Grant Aerona R290 air source heat pumps
- Supports efficient operation within low temperature heating systems
- Standard configuration allows flexibility across installation layouts
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Weight Empty |
Weight Full |
Height |
Width |
Depth |
Pressure Regulator |
Immersion |
Expansion Vessel |
Coil Rating Primary |
Coil Rating Secondary |
Coil Rating Solar |
Standing Heat Loss |
Energy Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPCY150G | Grant QR Single Coil Heat Pump Cylinder Model 150L | - | View | 36.5kg | 174.5kg | 1175mm | 561mm | - | - | - | - | - | - | - | - | b Water |
| HPCY180G | Grant QR Single Coil Heat Pump Cylinder Model 180L | - | View | 39kg | 207kg | 1354mm | 561mm | - | - | - | - | - | - | - | - | b Water |
| HPCY210G | Grant QR Single Coil Heat Pump Cylinder Model 210L | - | View | 44kg | 242kg | 1541mm | 561mm | - | - | - | - | - | - | - | - | b Water |
| HPCY300G | Grant QR Single Coil Heat Pump Cylinder Model | - | View | 54.5kg | 342kg | 2103mm | 561mm | - | - | - | - | - | - | - | - | c Water |
