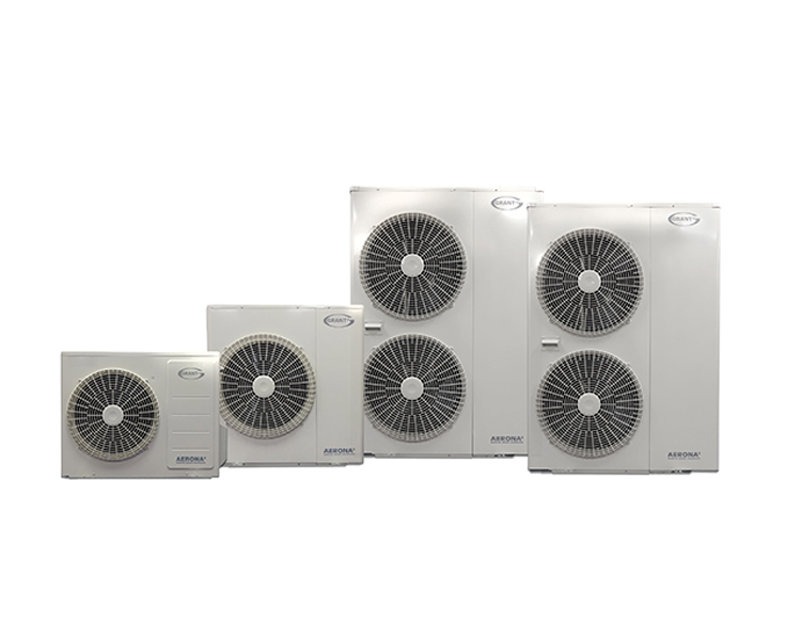

Grant Aerona³ R32 Air Source Heat Pump Range
The Grant Aerona3 air source heat pump range will be launching in August 2019. This range will include models from 6kW to 17kW. This new heat pump range will be using R32 refrigerant which is more environmentally friendly but still produces excellent efficiencies and performance.
Features & benefits
The new Grant Aerona3 air source heat pump uses R32 refrigerant which has a significantly lower Global Warming Potential (GWP) than other typical refrigerants such as R410A which will make it compliant with upcoming legislative targets. R32 is a single molecule refrigerant which removes the risk of temperature glide. The enables the system to recharge and recycle with greater ease thus leading the system to be more efficient. The Aerona3 R32 is our greenest heat pump to date but still incorporates all the features and benefits of our existing Aerona3 range such as DC inverter driven, built in weather compensation and base tray heating element to prevent against freezing.
- The R32 range are available in 6kW, 10kW, 13kW and 17kW
- Quiet mark * HPID13R32 & HPID17R32
- Extremely high SCOP
- 5 year guarantee
- Built in weather compensation
- Helps achieve renewable energy targets
- Operates with external temperatures as low as -20°C
- ErP rating of A+++ from September 2019
- Single phase
- Built in circulating pump
Multiple Package Solution Design Service
Take advantage of our teams specialist knowledge and have your property's full heating requirements designed, quoted and supplied by Grant. Click here for further information.
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Weight |
Height |
Width |
Depth |
SCOP 35°C |
Capacity |
Power Input |
Running Current (Max) |
Refridgerant |
Operating Voltage |
Flow/Return Tappings |
Min/Max Operating Temperatures - Air |
Sound Power Level 1M |
Sound Pressure Level at neighbouring assessment position |
ErP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPID6R32 | Grant Aerona³ 6kW R32 Inverter Driven Air Source Heat Pump | View | View | 51kg | 675mm | 898mm | 379.4mm | 4.62 | - | - | - | - | - | - | - | - | - | a+++ |
| HPID10R32 | Grant Aerona³ 10kW R32 Inverter Driven Air Source Heat Pump | View | View | 70kg | 882mm | 874mm | 405mm | 5.00 | - | - | - | - | - | - | - | - | - | a+++ |
| HPID13R32 | Grant Aerona³ 13kW R32 Inverter Driven Air Source Heat Pump | View | View | 99kg | 1418mm | 1024mm | 403mm | 5.41 | - | - | - | - | - | - | - | - | - | a+++ |
| HPID17R32 | Grant Aerona³ 17kW R32 Inverter Driven Air Source Heat Pump | View | View | 118kg | 1418mm | 1024mm | 403mm | 4.54 | - | - | - | - | - | - | - | - | - | a+++ |
Downloads
Accessories
Grant Aerona³ Accessories
- Available individually or as part of a pack.
- Compatible with all our Grant Aerona³ models
