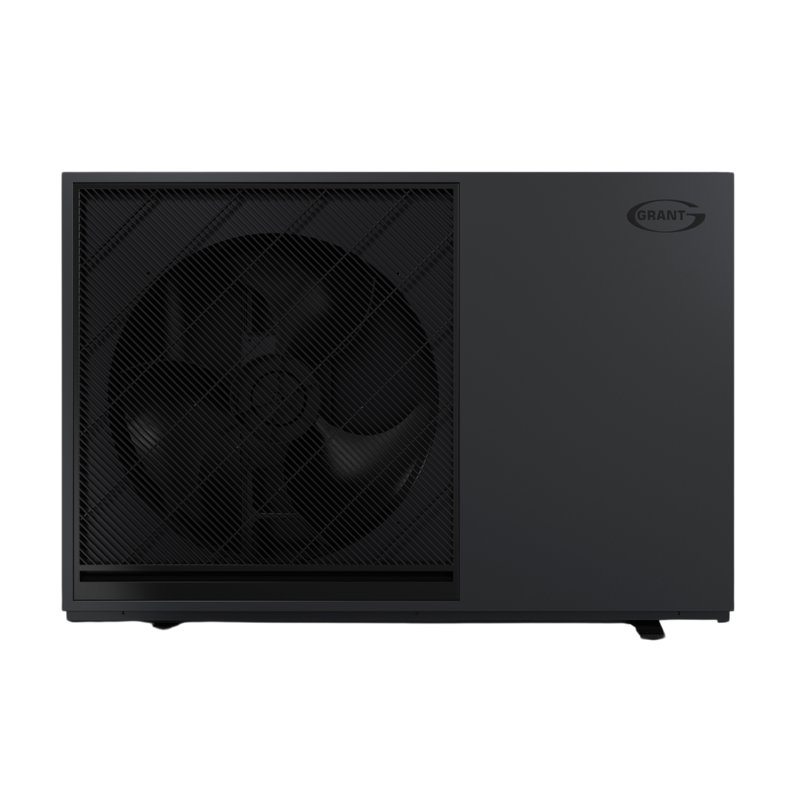

Grant Aerona R290 Air Source Heat Pump
The Aerona R290 air-to-water heat pump is Grant’s most innovative heat pump and represents a significant advancement in renewable heating technology. Engineered for superior efficiency, this innovative system utilises R290 refrigerant, a highly energy-efficient, natural refrigerant with an ultra-low Global Warming Potential (GWP), delivering a low-carbon, environmentally conscious heating solution.
The Aerona R290 features a streamlined design with a modern aesthetic, making it a practical and visually appealing choice for a range of residential applications. By leveraging the thermodynamic properties of R290, this system ensures exceptional performance while aligning with stricter environmental regulations and sustainability goals.
Specifically designed for high-efficiency space heating and domestic hot water production, the Aerona R290 integrates advanced controls, including the Aerona Smart Controller, enabling seamless remote monitoring and management. This heat pump is an ideal solution for professionals seeking to deliver sustainable, cutting-edge heating systems to meet the demands of eco-conscious homeowners.
a+++ HeatingFeatures & benefits
- Single phase heating outputs including 4kW, 6.5kW and 9kW, each rated at -5°C air temperature and 55°C water flow temperature
- Featuring sound-reducing features, such as acoustic cotton sound insulation in the casing and twin eccentric cam levers with balancing weights, each heat pump operates with ultra-low sound levels and is Quiet Mark accredited
- Designed for installation with the Aerona Smart Controller, the Aerona R290 can be remotely managed and monitored to assist heat pump installers with off-site diagnostic support as well as facilitating weather and load compensation, heating curve adjustments and set-up support
- Features built-in PWM circulating pump, DC twin rotary compressor, low- and high-pressure protection controls, discharge temperature protection controls and factory-fitted automatic air vent and 3-bar pressure relieve valve
- Uses electronic expansion valve to precisely control the flow of R290 refrigerant into the evaporator as well as a 4-way valve to divert the refrigerant flow for the defrost operation
- Incorporates R290 refrigerant safety features including a refrigerant leak sensor and independent ventilation channels allowing for fresh air intake
- Units have an anti-freeze protection heater on the plate heat exchanger and heated base tray. Mechanical anti-freeze valves can be used to protect the external system pipework, as glycol antifreeze cannot be used
- Multiple condensate drain holes in the base tray and overflow holes facilitate the clear removal of condensate from the heat pumps
Updated R290 Heat Pump Training
The onsite Grant Training Academy and online eLearning Academy offers comprehensive heat pump training courses, designed to equip heating professionals with the technical expertise and qualifications needed to excel in the field. This course covers all aspects of the Grant Aerona R290 heat pump range and the Grant Aerona Smart Controller, and provides installers with in-depth knowledge of the design, operation, installation, commissioning, and maintenance of these heat pumps that utilise the R290 refrigerant.
The Aerona R290 ASHP Installer Course also includes critical training on safe handling practices for R290 refrigerant and detailed guidance on meeting required building compliance. For additional information on course content and upcoming training dates, click here.
Downloads
Accessories
Grant Aerona Smart Controller
- Touchscreen display housed in a stylish black casing
- Set up heating schedules with ease
- Stay in control even when you are away from home
