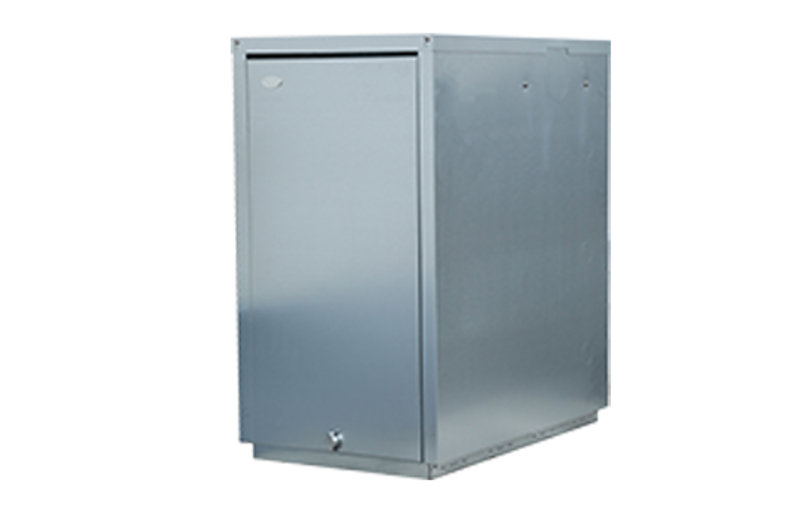

Grant Vortex Outdoor Combi
A high efficiency condensing range of oil-fired outdoor combi boilers designed for cost effective installation, instant hot water production and situations where internal space is at a premium.
a HeatingFeatures & benefits
As with all oil-fired appliances, Grant Condensing Combi Boilers require commissioning at the time of Installation. This simple process ensures that the boiler is working at peak efficiency which, in turn, will result in lower running costs and long term reliability. Annual maintenance is also made easy by Grant’s cleverly designed front service access to both burner and all the internal serviceable parts. Installation must comply with the current Building Regulations. Comprehensive technical information can be found in the installation manual.
- High efficiency SEAI HARP ‘A’ Rating
- Mains pressure hot water on demand
- High Domestic Flow Rates
- Features a Riello RDB Burner & 24 litre expansion vessel
- *One year manufacturer's warranty with five year guarantee on boiler heat exchanger (T&Cs Apply)
- Optional pipe entry points
- Unique drop-down control panel for ease of servicing
- Fully valved flow, return and cold feed, meaning the appliance can be completely isolated from the system
- Comes complete with a factory fitted multi-directional flue
- Optional side or rear flue exits
Grant announces streamlining of oil boiler ranges
In August 2022, the Grant Vortex and Euroflame oil fired boiler ranges will be streamlined, with many existing models rationalised to simplify the selection and ordering products and making the process more straightforward overall.
Read more here.
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Set Output |
Max Output |
Weight |
Height |
Width |
Depth |
Efficiency |
NOx Emissions |
Energy Rating |
Load Profile |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VORTCBMOD26P | Grant Vortex Combi 26 | 26kW | View | - | 26kW | 188kg | 945mm | 754mm | 658mm | 92.2 | Compliant | a Heating b Water | - |
| VORTCBMOD36P | Grant Vortex Combi 36 | 36kW | View | - | 36kW | 218kg | 945mm | 754mm | 658mm | 94.2 | Compliant | a Heating b Water | - |
Downloads
Accessories
Grant Vortex Mag One Magnetic Filter
- 6 bar max working pressure
- Supplied with spare sealing washers & o-rings
- 360° installation & 1" G.B connections
Fire Valve
- Essential fire protection for oil boilers
- Two alternative temperature settings
- Remote sensing up to 20 meters
