Hot Water Cylinders

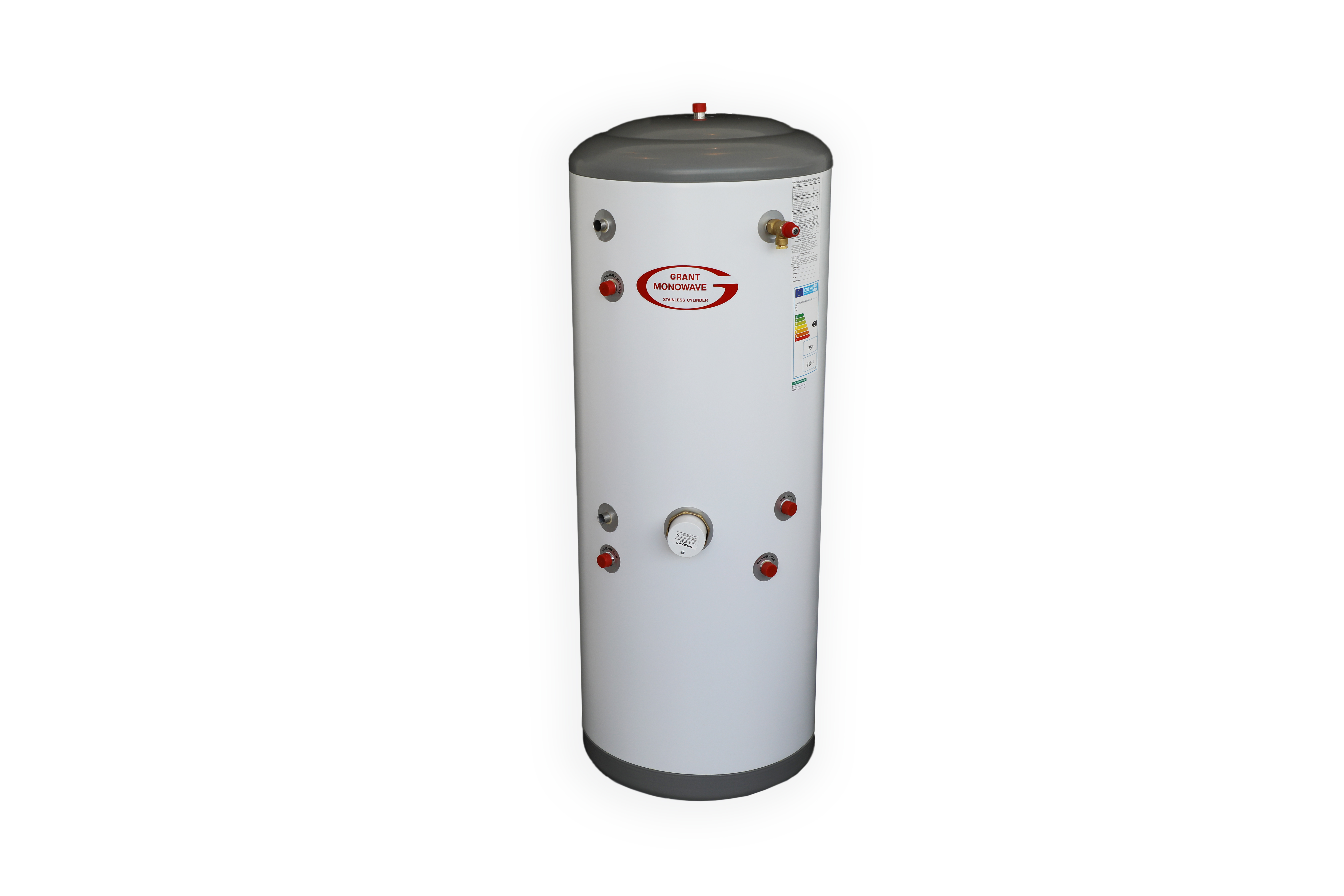

Grant High Performance Cylinders
To complement our air source heat pump range, solar thermal and boiler ranges, we supply a comprehensive selection of efficient hot water cylinders, including a cabinet cylinder model suitable for installations when a separate airing cupboard is not available.
Our High Performance Cylinders are available in indirect single and twin coil cylinders, in both 210 and 300 litre sizes. We also offer a pre-plumbed cylinder, for quick and convenient installations.
Features & benefits
- 10 year guarantee on cylinder shell (subject to T&C’s)
- Available from 210 – 300L
- Immersion heater & fast recovery stainless steel solid coils
- Suitable for use with heat pumps, biomass, gas, oil boilers and solar
- Suitable for both domestic and light commercial use
- Manufactured from ‘Duplex’ stainless steel for superior corrosion resistance
- 28mm and 22mm compression fittings
- 50mm CFC and HCFC-free foam lagging for low heat loss
- Additional sizes may be available upon request
- Cylinder kits available
Specification
Product code |
Model |
Energy Label |
Product Fiche |
Weight Empty |
Weight Full |
Height |
Width |
Depth |
Pressure Regulator |
Immersion |
Expansion Vessel |
Coil Rating Primary |
Coil Rating Secondary |
Coil Rating Solar |
Standing Heat Loss |
Energy Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HPMONOA/IND200 | GRANT Monowave single coil indirect stainless steel 200ltr cylinder for ASHP (A Rated cylinder) | View | View | 70kg | 270kg | 1950mm | 580mm | 580mm | - | - | - | - | - | - | - | a Heating |
| HPMONO/IND200 | GRANT MonoWave single coil indirect s/s 200 litre cylinder for ASHP | View | View | 49kg | 249kg | 1230mm | 580mm | 580mm | - | - | - | - | - | - | - | b Heating |
| HPMONO/IND300 | GRANT MonoWave single coil indirect s/s 300 litre cylinder for ASHP | View | View | 68kg | 368kg | 1745mm | 580mm | 580mm | - | - | - | - | - | - | - | c Heating |
| HPDUO/IND200 | GRANT DuoWave solar twin coil indirect stainless steel 200 litre cylinder for ASHP | View | View | 53kg | 253kg | 1230mm | 580mm | 580mm | - | - | - | - | - | - | - | b Heating |
| HPDUO/IND300 | GRANT DuoWave solar twin coil indirect stainless steel 300 litre cylinder for ASHP | View | View | 72kg | 372kg | 1745mm | 580mm | 580mm | - | - | - | - | - | - | - | c Heating |
| CYL300TRIPLE | GRANT Duowave plus open vented triple coil solar indirect stainless steel 300ltr cylinder | - | - | 74kg | 374kg | 1745mm | 580mm | 580mm | - | - | - | - | - | - | - |
